  • 30cm DTF garment printer HYL-E302
  • 30cm DTF garment printer HYL-E302
  • 30cm DTF garment printer HYL-E302
30cm DTF garment printer HYL-E30230cm DTF garment printer HYL-E30230cm DTF garment printer HYL-E302

30cm DTF garment printer HYL-E302

  • Product Item : HYL-E302
  • Category: DTF Garment Printer
  • Print Head:2 Pcs Epson i1600/ i3200 Printheads
  • Max printing size: 32cm
  • Application: t-shirts, hoodies, caps, shoes, etc
  • Ink color: CMYK+W
  • INQUIRY   EMAIL

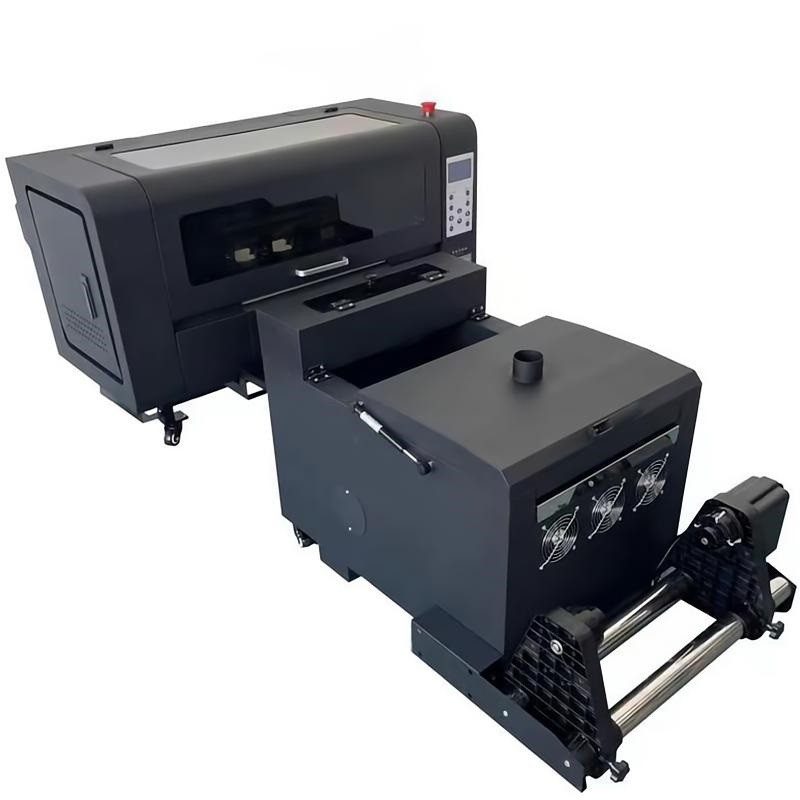

HYANCOLOR 30CM DTF Film Printing Machine

The HYL-E300 DTF Garment Printer is an advanced printing solution designed specifically for direct-to-fabric (DTF) printing on garments. With its cutting-edge technology and features, it offers high-quality and vibrant prints on various types of fabrics. The HYL-E300 DTF Garment Printer is equipped with precision print heads Epson I3200 that ensure accurate and consistent printing results. It supports a wide range of colors, allowing for the creation of intricate and vivid designs. The printer also offers adjustable print settings to optimize the printing process for different fabric types and designs.


Features

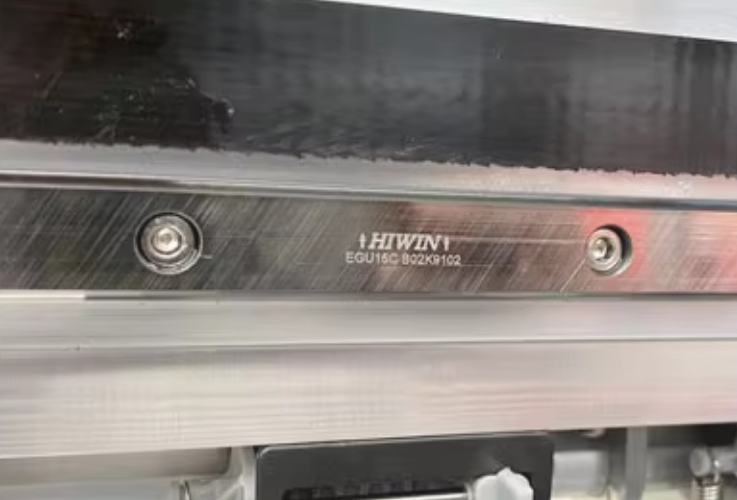

HIWIN guide rail

The HIWIN guide rail enhances the running stability of the machine and improves its printing accuracy.

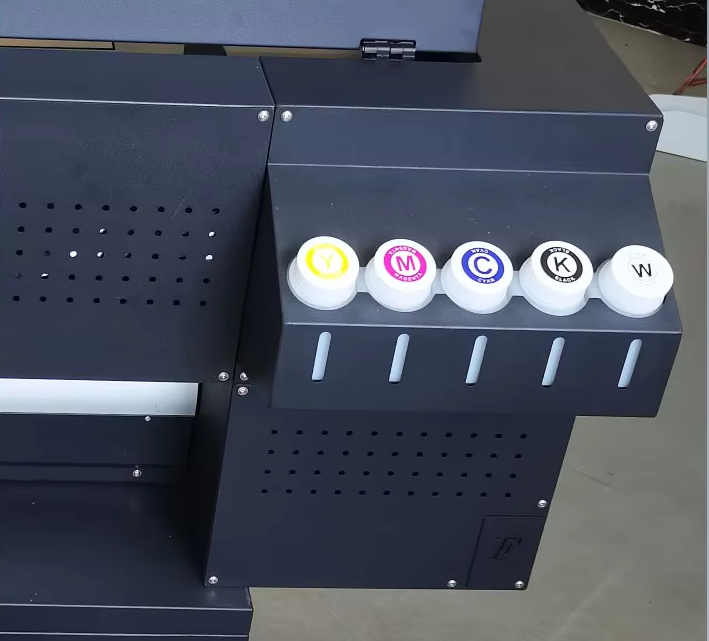

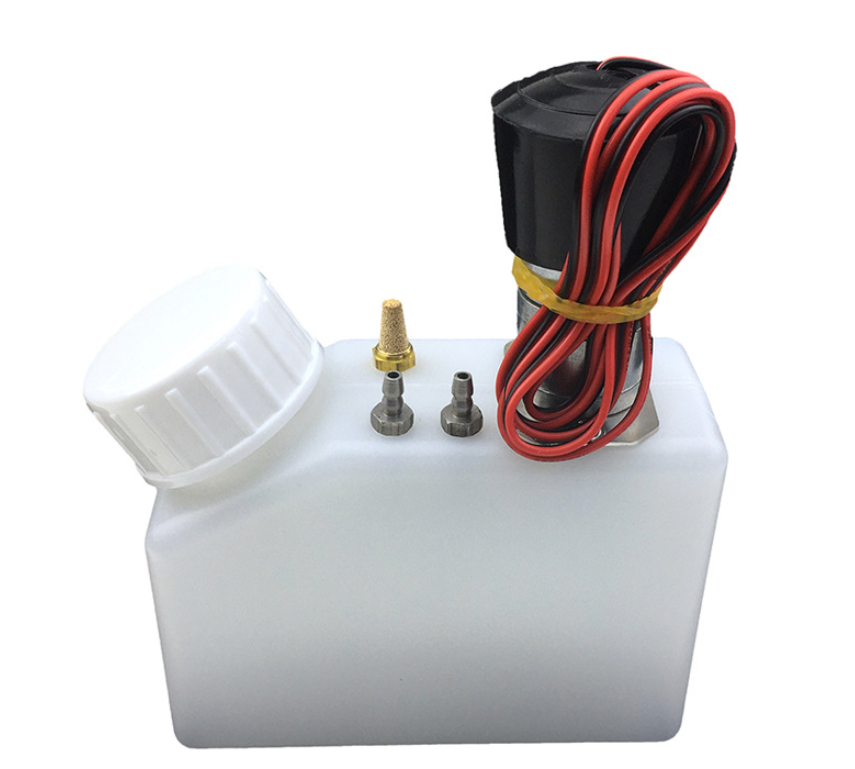

Continuous ink supply system

With a continuous ink supply system and constant pressure ink delivery, it effectively prevents ink interruptions.

High-quality hot-melt powder

High-quality hot-melt powder, can be used repeatedly.

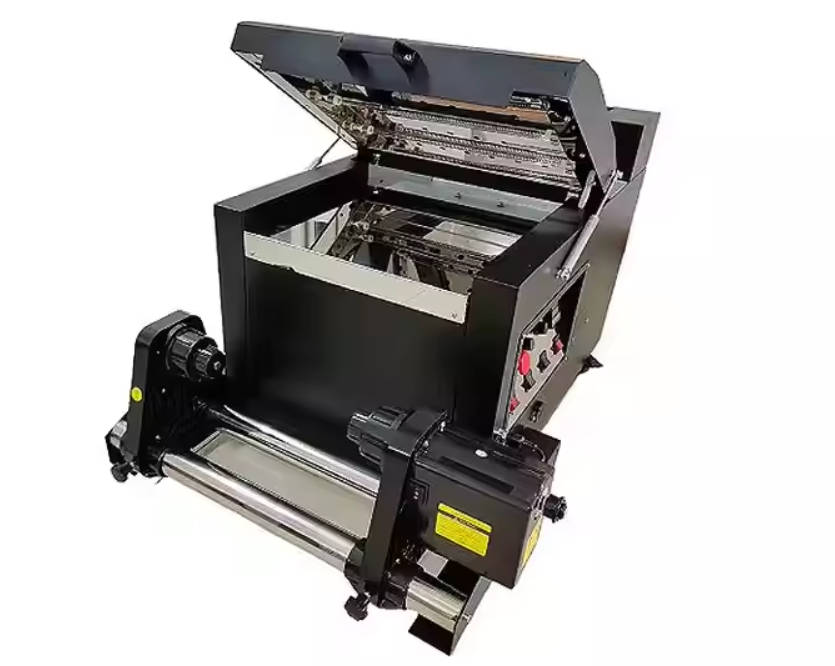

Efficient powder shaking device

Efficient powder shaking device, powder shaking is clean.

Flip top powder box

Flip top powder box, simple operation, convenient to add powder.

External power supply

External power supply, intelligent rolling system.

Working Process


Working Process Videos


▼ Design Pattern

Use photoshop, illustrator or other software to design your pattern.

▼ Print Your Design

Adjust the printer parameters in the RIP software and use our printer and ink to print your pattern.

▼ Powdering

Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.

▼ Heat Press

Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.




Technical Specifications

Digital Printing Machine
Model
HYL-E302
Print Head
2PCS XP600/I1600&I3200 Print Heads Optional
Printing Technology
Piezoelectric Inkjet
Acceptable Media Width 320 mm
Thickness Maximum 39 mil(1 mm)
Printing Width
320 mm
Ink Cartridges Type Transfer Pigment Ink
Capacity Continual Ink Supply System ( 220ML )
Color CMYK + W
Applicable Medium
Transfer film
Color Manage
ICC or density curve
Media Heating System
Powder & color fixing machine
Interface
RJ-45/LAN
RIP Software
Maintop/Photoprint
Power Supply
50HZ/60HZ,220V/110V/10A
Environment Temperature 22℃ to 28℃
Humidity 40% to 70%
Printer Dimensions(With Stand)
L970mm*W450mm*H420mm
Packing Dimensions
L1080mm*W610*H710mm
Weight
G.W : 80kg N.W :60kg

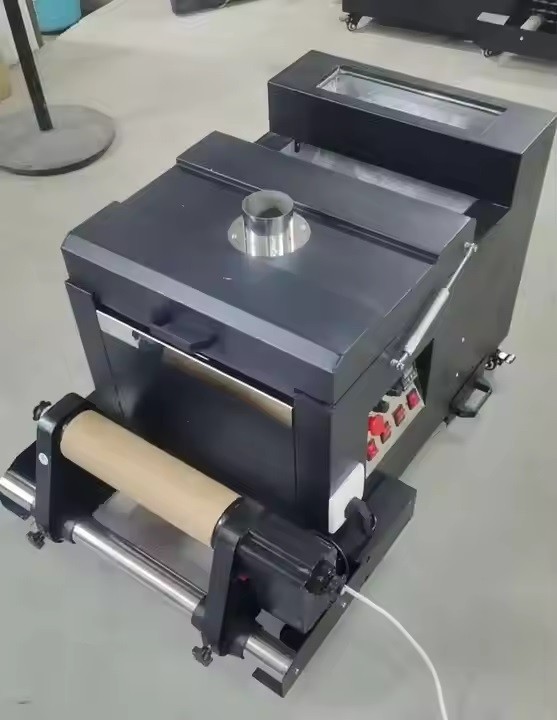

Shaking Powder and Color Fix Machine
Model D300
Media Width 0-300mm
Applicable Medium Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc.
Powder Control Powder shake control, powder control, powder direction and volume control
Heating & Drying Function Multi-stage heating system, drying, cold air fan function
Rewind Function Automatic induction winding
Electrical Parameters Rated Voltage: 220V            Rated Current: 13A
Rated Power: 2.3KW          Power Consumption: 1KW-2.3KW
Packing Size & Weight L800mm*W630*H730mm
G.W: 55kg       N.W: 40kg
