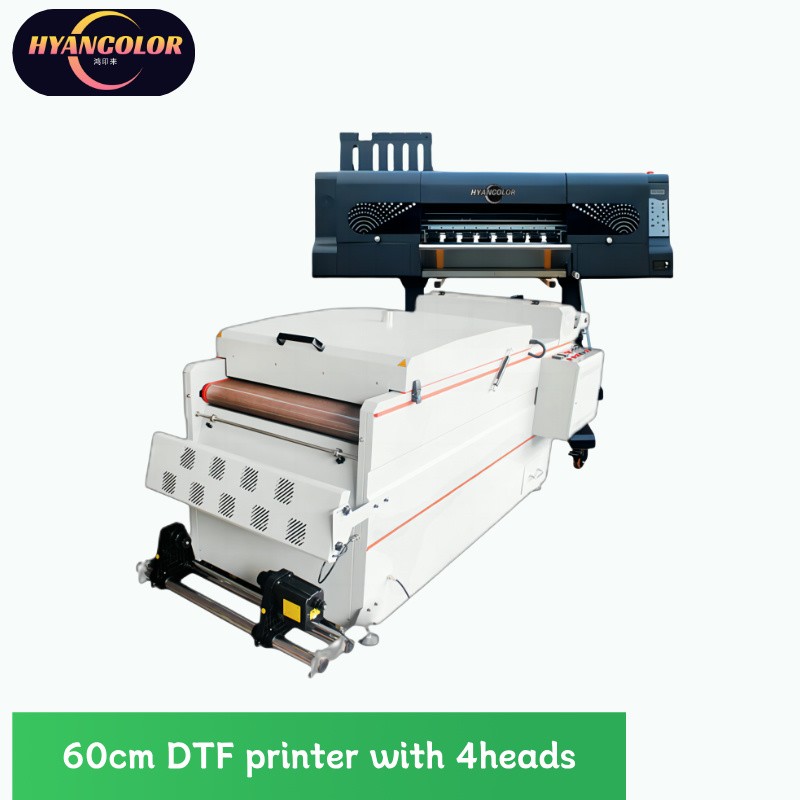

60cm DTF Garment Printer HYL-T604

Product Item : HYL-T604
Category： DTF Garment Printer
4*EPSON I3200-A1
Printing Speed: 23sqm/h
Ink Color:CMYK+W
Max print width is 60cm
INQUIRY EMAIL

HYANCOLOR 60CM DTF Film Printing Machine

The HYL-T604 DTF Garment Printer is an advanced printing solution designed specifically for direct-to-fabric (DTF) printing on garments. With its cutting-edge technology and features, it offers high-quality and vibrant prints on various types of fabrics. The HYL-T604 DTF Garment Printer is equipped with precision print heads Epson I3200 that ensure accurate and consistent printing results. It supports a wide range of colors, allowing for the creation of intricate and vivid designs. The printer also offers adjustable print settings to optimize the printing process for different fabric types and designs.

Features

THK high-precision mute rail.

Stable bulk system ensures amazing printing speed.

High-quality hot-melt powder, can be used repeatedly.

Efficient powder shaking device, powder shaking is clean.

Flip top powder box, simple operation, convenient to add powder.

External power supply， intelligent rolling system.

Working Process

Working Process Videos

▼ Design Pattern

Use photoshop, illustrator or other software to design your pattern.

▼ Print Your Design

Adjust the printer parameters in the RIP software and use our printer and ink to print your pattern.

▼ Powdering

Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.

▼ Heat Press

Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.

Technical Specifications

Digital Printing Machine
Model		HYL-E604
Print Head		4PCS I1600&I3200 Print Heads Optional
Printing Technology		Piezoelectric Inkjet
Acceptable Media	Width	700 mm
Acceptable Media	Thickness	Maximum 39 mil(1 mm)
Printing Width		700 mm
Ink Cartridges	Type	Transfer Pigment Ink
	Capacity	Continual Ink Supply System ( 220ML )
	Color	CMYK + W
Applicable Medium		Transfer film
Color Manage		ICC or density curve
Media Heating System		Powder & color fixing machine
Interface		RJ-45/LAN
RIP Software		Main top
Power Supply		50HZ/60HZ,220V/110V/10A
Environment	Temperature	22℃ to 28℃
Environment	Humidity	40% to 70%
Printer Dimensions(With Stand)		L1800mmW800mmH1620mm
Packing Dimensions		L1900mmW900MMH1000mm
Weight		G.W : 230kg N.W :180kg

Shaking Powder and Color Fix Machine
Model	H650
Media Width	0-600mm
Applicable Medium	Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc.
Powder Control	Powder shake control, powder control, powder direction and volume control
Heating & Drying Function	Multi-stage heating system, drying, cold air fan function
Rewind Function	Automatic induction winding
Electrical Parameters	Rated Voltage: 220V Rated Current: 23A
Electrical Parameters	Rated Power: 5KW Power Consumption: 3KW-3.5KW
Packing Size & Weight	Standard with 2heads : 1800* 1130* 1140mm
Packing Size & Weight	G.W: 303kg N.W: 229kg
