A1 UV Flatbed printer HYL-T7010UV

Product Item : HYL-T7010UV
Category： UV Flatbed Printer/UV DTF Flatbed Printer
Max Print Size: 700mm*1000mm
Print Mode: C,M,Y,K+W+Varnish
Print Head: 3 EPSON Printheads
Max Print Speed: 8m2/h
INQUIRY EMAIL

A1 UV Flatbed Printer - Model HYL-T7010UV

The A1 UV flatbed printer model HYL-T7010UV is capable of printing on a maximum area of 70x100cm. It utilizes UV technology for printing, allowing for fast and efficient printing on various materials. With its large printing range, it is suitable for producing high-quality prints on items such as signage, promotional materials, packaging, and more. The printer is equipped with advanced features to ensure precise and vibrant printing results.

Max Printing Size: 70x100cm
Max Printing Speed: A4 size 85seconds
Printheads: 2-3 PCS TX800/DX5/XP600/3200 HEADS
Printing Material: Glass, Tile, Acrylic, PP, Metal, Wood, and more

Versatile applications:

UV printers have versatile applications across industries, including signage, packaging, decoration, textiles, industrial markings, and specialty printing. With their ability to print on various substrates and deliver high-quality results, UV printers have become a go-to solution for businesses seeking efficient and visually stunning print solutions.

Precise and vibrant prints:

UV printing technology allows for precise and detailed prints on acrylic surfaces, capturing intricate designs and vibrant colors with exceptional clarity.

Durability and scratch resistance:

UV-cured inks used in acrylic printing create a durable and scratch-resistant surface. This ensures that the printed design remains intact and vibrant, even with regular handling or exposure to external elements.

Product details

A1 UV Flatbed Printer Specifications

Model	HYL-T7010UV
Applicable Medium	Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC, PP, PE, PTFE Etc.
Printing Size	700mm*1000mm
Acceptable Media	Width 700mm, thickness 16cm
Printhead	2/3Pcs Epson Heads

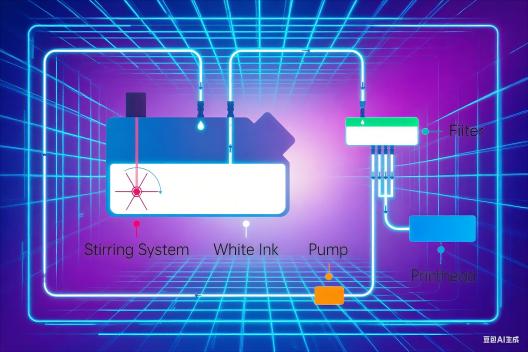

Ink Cartridges	Capacity: 500ml+ regular mixing of white ink Ink color: CMYK/CMYK+W/CMYK+W+V
Printing Speed	720*360dpi 4 minutes for A2 size
Ink Curing Method	UV LED light
Print Interface	USB3.0
Operation Environment	Temperature: 20℃~32℃; Humidity: 35%~80%
Rated Power	500W
Power Supply	50Hz/60Hz, 220V(±10%)>1.7A

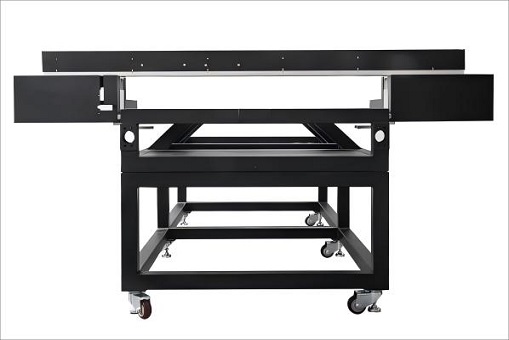

Machine Size	L1800×W1620×H1200mm/380kg
Package Size	L2160×W1760×H1530mm/480kg
